Product Specifications

• Product name Xiaomi Wireless Mouse Lite 2
• Product dimensions 188 x 100.5 x 175 mm
• Processor MT7628DA
• Memory ROM: 16MB
• RAM: 64MB
• Wi-Fi 2.4GHz Wi-Fi: 2x2, IEEE 802.11n, up to 300Mbps
• 5GHz Wi-Fi: 2x2, IEEE 802.11ac, up to 867Mbps
• Dual band: 2.4GHz and 5GHz
• Antennas 4 external antennas
• 2 2.4GHz antennas with gain up to 5dBi
• 2 5GHz antennas with gain up to 6dBi
• Heat dissipation Natural heat dissipation

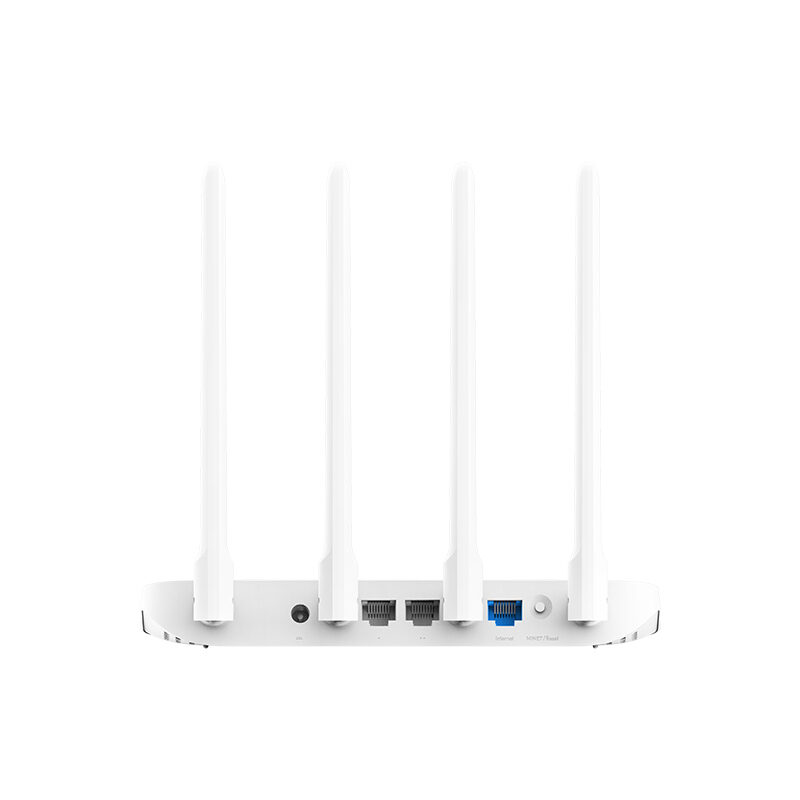

• Interfaces 2x LAN ports 10/100M (Auto MDI/MDIX)
• 1x WAN port 10/100M (Auto MDI/MDIX)
• 2 LED indicators
• 1 reset button
• 1 power port
• Supported standards IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u
• Certifications GB9254-2008
• YD/T993-1998
• GB4943.1-2011
• Wi-Fi transmit power (CE EIRP) <20dBm (2.4GHz)
• <23dBm (5GHz)
• Signal conditioning models 11b: DSSS (DBPSK, DQPSK, CCK)
• 11a/g: OFDM (BPSK, QPSK, 16QAM, 64QAM)
• 11n: MIMO-OFDM (BPSK, QPSK, 16QAM, 64QAM)
• 11ac: MIMO-OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM)
• Operating system Mi Wi-Fi ROM, based on OpenWRT
• Security WPA-PSK/WPA2-PSK
• Manage Via web, Android/iOS application
• Operating temperature 0°C to 40°C
• Operating humidity 10%-90% RH
• Storage temperature -40°C to 70°C
• Storage humidity 5%-90% RH
